In this article I will share the process I have followed in order to configure a Farcaster frame on an existing SPA. Let's go!

1. Download manifest on Warpcast

Farcaster require a publicly accessible manifest in order to be able to identify the owner of the frame.

This is a json file with two main sections :

• accountAssociation : this part contains the data which allow to associate the frame with a Farcaster account

• frame : this part contains the frame settings

The manifest can be generated from Developer Tools in Warpcast.

First we have to enable Developer Tools in Settings > Advanced > Developer mode

We can now access to the Domain Manifest section in Settings > Developer > Domains

Here we can add domain name without protocol (ex web3.anyvoid.xyz), and next we can click on Generate domain manifest. A json file is generated and copied into the clipboard, the next step is to update the frame section of the manifest.

2. Update Manifest

In the json file we have to update attributes in the frame section :

• name

• iconUrl

• homeUrl

• imageUrl

• buttonTitle

• splashImageUrl

• splashBackgroundColor

The manifest must accessible from .well-known/farcaster.json in the public directory of the application. For this example, the manifest is available at this address : https://web3.anyvoid.xyz/.well-known/farcaster.json

As we can see we have to add 2 images in the public directory, in my case I have used the following images :

3. Use Farcaster Frame SDK

Now we have to install farcaster/frame-sdk in the project, it can be done using npm install :

npm install @farcaster/frame-sdk

Next we have to use the sdk in order to allow our application to load into the frame, you can see bellow the updated index.js file :

4. Add Metadata

The last point is to add a new meta attribute in the page header in order to describe the frame. For this example, there is only one action, the goal is to open the application into the frame and be able to read it's content.

The attribute has two properties :

• name : fc:frame

• content : json data

The result in my case is the following :

5. Validation

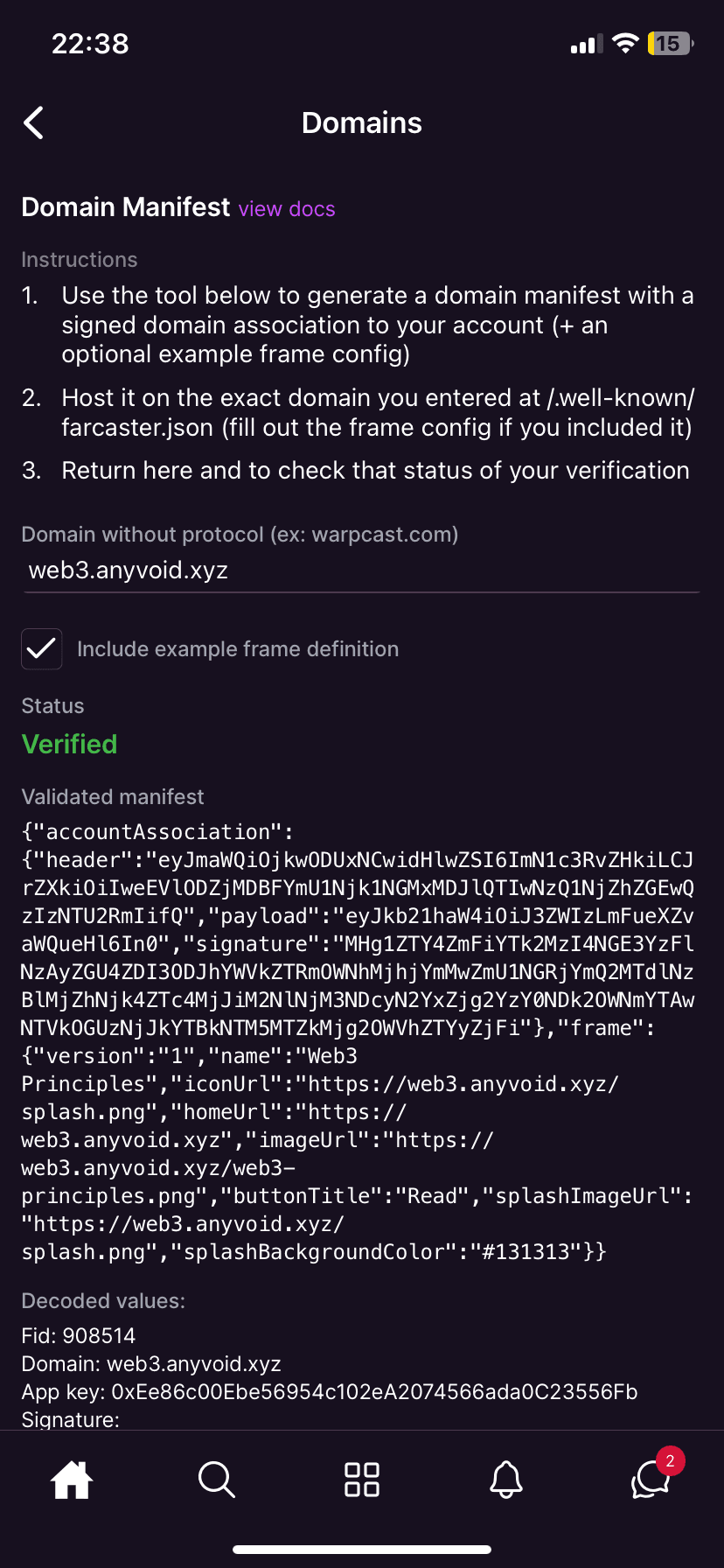

Deploy the application and go back on Warpcast in Settings > Developer > Domains and click on "Check domain status"

Here we go! The status is verified, it means Farcaster has successfully parsed the manifest .well-known/farcaster.json

Now we can test the frame in Settings > Developer > Frames

The frame is now ready to be used in Farcaster by sharing the link to the application into a cast

Conclusion

In this article we've seen how to configure a Farcaster frame into an existing application in order to be able to read the content directly from the frame. As we can see it was pretty simple and the result is stunning.

Resources

• https://github.com/NicolasMugnier/nm-web3/commits/main/

• https://docs.farcaster.xyz/developers/frames/

Thank you for taking the time to read this article, feel free to share your thoughts, experiences, or questions in the comments. Have a great day!
