This post provides an overview of various data structures, including arrays, linked lists, and hash tables, and explores the unique characteristics and use cases of each. It also delves into the blockchain data structure, highlighting its distinctiveness from traditional data structure and its advantages and disadvantages.

Data Structure refers to a way of organizing and storing data in a computer system or program. It provides a means to efficiently manage and manipulate data, making it easy to access, modify, and retrieve information. Data structures act as containers that hold data items and offer operations or methods to interact with them effectively.

Examples of common data structures include arrays, linked lists, stacks, queues, trees, graphs, and hash tables. Each data structure has its own characteristics, advantages, and specific use cases. They are used to solve various computational problems, optimize algorithms, and enhance overall program efficiency.

In the previous section, I mentioned several common data structures. Now, I will proceed to showcase three primary data structures, discussing their characteristics, advantages, disadvantages, and use cases. This will serve as a foundation before delving into the topic of the blockchain data structure.

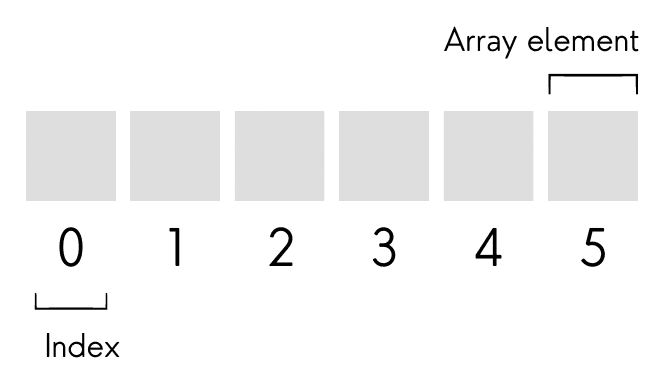

Array data structure is a fundamental and widely used data structure in computer programming. It is a sequential collection of elements of the same type, stored in contiguous memory locations. Each element in the array is accessed by its index, which represents its position within the array.Advantages:

• Arrays provide constant-time access to elements

• Array elements are stored contiguously in memory, facilitating efficient memory utilization and cache locality, which can improve performance.

Disadvantages:

• Size was predetermined and cannot be changed. It leads to inefficiency or memory wastage if the size is not chosen appropriately.

• Inserting or deleting elements in the middle of an array can be inefficient since it requires shifting elements to accommodate the changes.

Specific use cases:

• Arrays are commonly used when there is a need to store and access a collection of elements in a specific order.

• They are suitable for scenarios that require random access to elements based on their index, such as searching, sorting, or manipulating data.

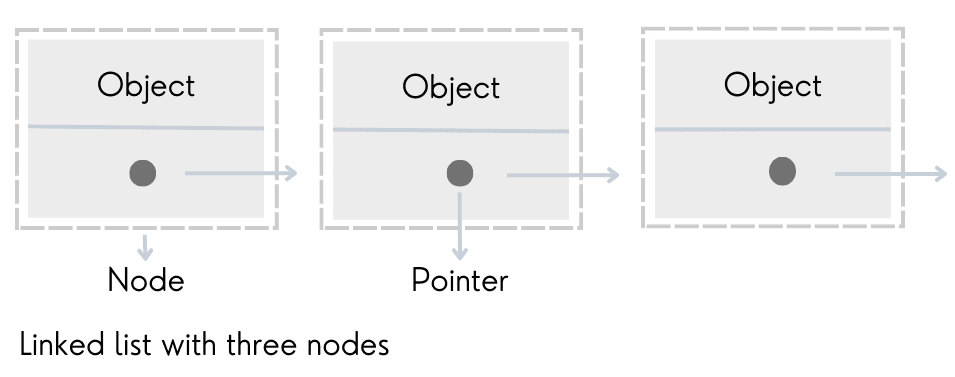

Unlike an array, a linked list does not store elements in contiguous memory locations. Instead, it consists of a series of nodes, where each node contains the data and a reference (or pointer) to the next node in the sequence. The nodes of a linked list can be scattered throughout memory, but they are connected through pointers, allowing for traversal and accessing elements sequentially.

Advantages:

• Linked lists have a dynamic size, as nodes can be easily inserted or removed from the list.

• Insertion and deletion of elements in a linked list can be done efficiently by adjusting the pointer.

• Linked lists can be useful when the size of the data structure needs to change frequently, as they can accommodate insertions and deletions without requiring significant memory reallocation.

Disadvantages:

• They do not provide constant-time random access to elements like arrays do. Traversing a linked list to access a specific element typically requires iterating through the list from the beginning. This can lead to slower performance compared to arrays when direct access to elements is necessary.

Specific use cases:

• Linked lists are often used when there is a need for efficient insertion and deletion operations, especially in scenarios where the size of the data structure may change frequently.

• Linked lists are helpful in situations where the memory allocation for the elements is dynamic or unpredictable.

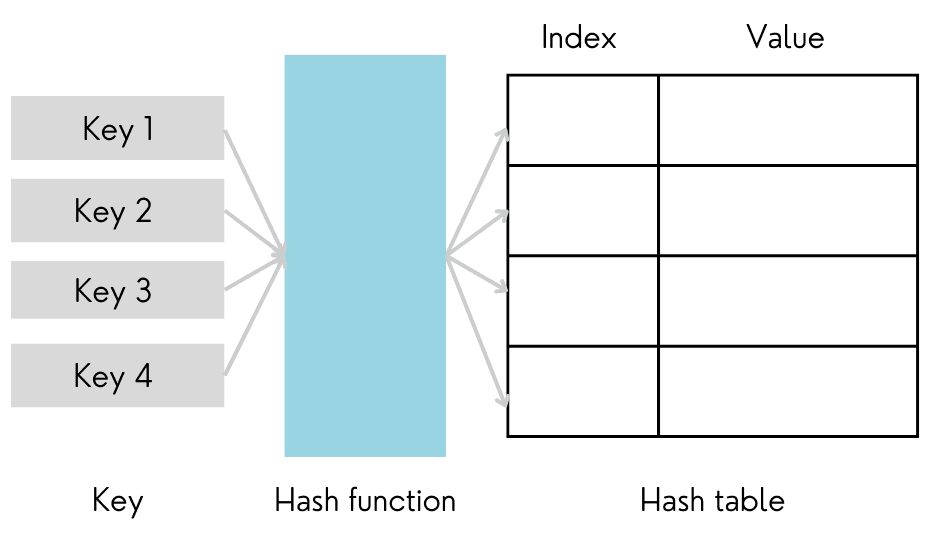

Hash table is a data structure that provides efficient insertion, deletion, and retrieval operations. It is based on the concept of hashing, which involves mapping keys to indices in an array (often called a hash table or hash map) using a hash function.

Hash table consists of three components:

• Key: A Key can be a string or integer which is fed as input in the hash function which is the technique that determines an index or location for storage of an item in a data structure.

• Hash Function: The hash function takes a key as input and computes a hash code, which is used to determine the index where the corresponding value will be stored.

• Hash Table: A hash table consists of an array that stores key-value pairs, where each key is mapped to an index in the array using a hash function.

Advantages:

• Hash tables provide constant-time average-case complexity for insertion, deletion, and retrieval operations, making them highly efficient for managing large datasets.

• They allow for fast lookup of values based on their keys, which is useful in scenarios where quick access to data is essential.

• Hash tables can be dynamically resized to accommodate changes in the number of stored elements, maintaining a balance between space utilization and performance.

Disadvantages:

• Hash collisions can occur when different keys produce the same hash code. It will lead to a poor performance.

Specific use cases:

• Hash tables are commonly used in applications that require efficient data retrieval and storage based on key-value pairs.

• They are valuable for implementing associative arrays, symbol tables, caches, and various database indexing techniques.

• Hash tables are widely used in language libraries and frameworks to provide efficient data structures for storing and accessing data

Blockchain is a unique and innovative data structure that is fundamentally different from traditional data structures. It is a distributed and decentralized ledger that maintains a growing list of records called blocks, which are linked together using cryptographic hashes.

Each block in a blockchain contains a set of transactions or data, along with a reference to the previous block through a cryptographic hash. This creates an immutable chain of blocks that ensures the integrity and tamper resistance of the stored data.

Consensus mechanisms, such as Proof of Work (PoW) or Proof of Stake (PoS), are used to validate and agree upon the addition of new blocks to the chain.

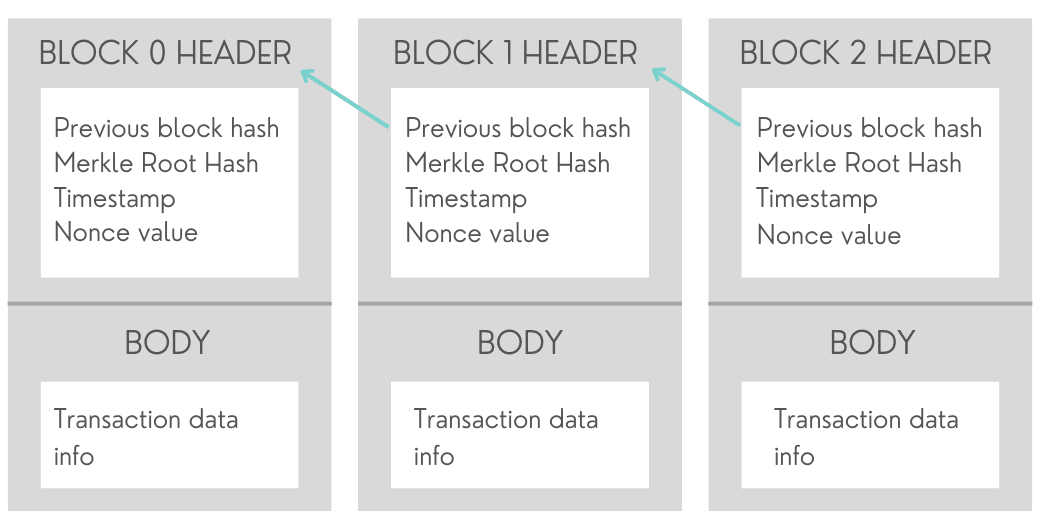

Each block consists of a header and a body.  A body contain information about the block and transactions such as gas fee, number of block, the coin amount transferred and a block header contains several types of information as below:

• Hash value of previous block

• A Merkle root hash: represents a summary of all transactions included in the block

• Time-stamp: is the epoch time when the data/information is hashed.

• Nonce value: is the valuable that miners change to modify the hash so it can meet the difficulty target. This process is covered in detail in this post.

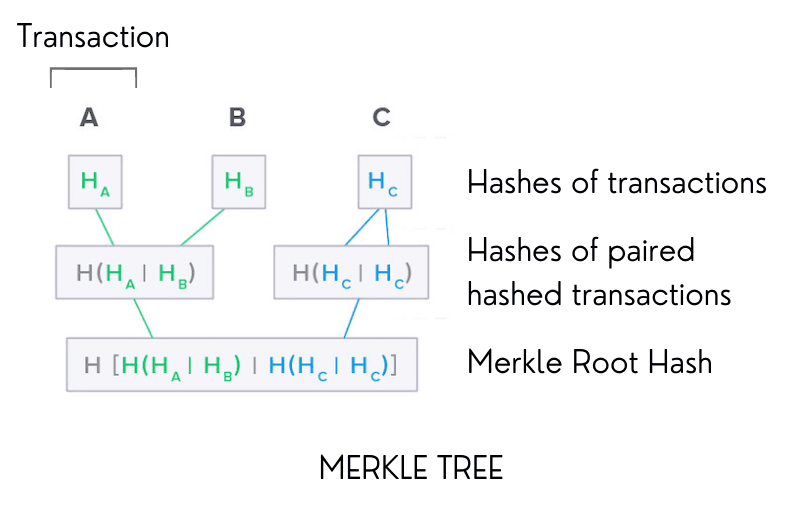

Each transaction in a block is considered as a leave of a Merkel Tree. And the Merkel Tree root serves as a summary of all transactions contained in a block. The process of building the Merkel Tree is described as below:

• Step 1: Each leave (transaction) is hashed.

• Step 2: The hashed of two transactions will be concatenated and hashed again. If the number of transactions is odd, the last transaction hash is concatenated with a copy of itself.

• Step 3: The process continues until there is only one single hash left - the Merkel Root.

Advantages:

• Immutability and tamper-evidence: if there is any data change in one block, i will lead to the change in all of the rest block which will not be verified by other miners/node operators in the chains.

• Transparency: Because every participating node has a copy of the entire blockchain, it enables public verification of transactions and prevents single points of failure.

• Decentralization: It enhances security and resilience, as it becomes computationally difficult to alter or manipulate past transactions without consensus from the network.

Disadvantages:

• The blockchain's distributed nature and consensus mechanisms introduce trade-offs in terms of scalability, energy consumption, and transaction speed.

• Specific user cases: The underlying characteristics of blockchain, including decentralization, transparency, immutability, and security, make it valuable in sectors where trust, transparency, and secure record-keeping are crucial. For example:

• Supply chain management can benefit from blockchain to track and verify the origin, authenticity, and movement of goods.

• Blockchain can be used for secure record-keeping in areas like healthcare, voting systems, intellectual property rights, and identity management.

• Finance Industry can use blockchain to tokenize real world assets (Tokenization Digital Assets) and so much more

I hope this exploration will provide you with a deeper understanding of blockchain's significance in the realm of data. Thank you so much for your interest into math, science and technology. And see you in the next post.

Charlotte.
