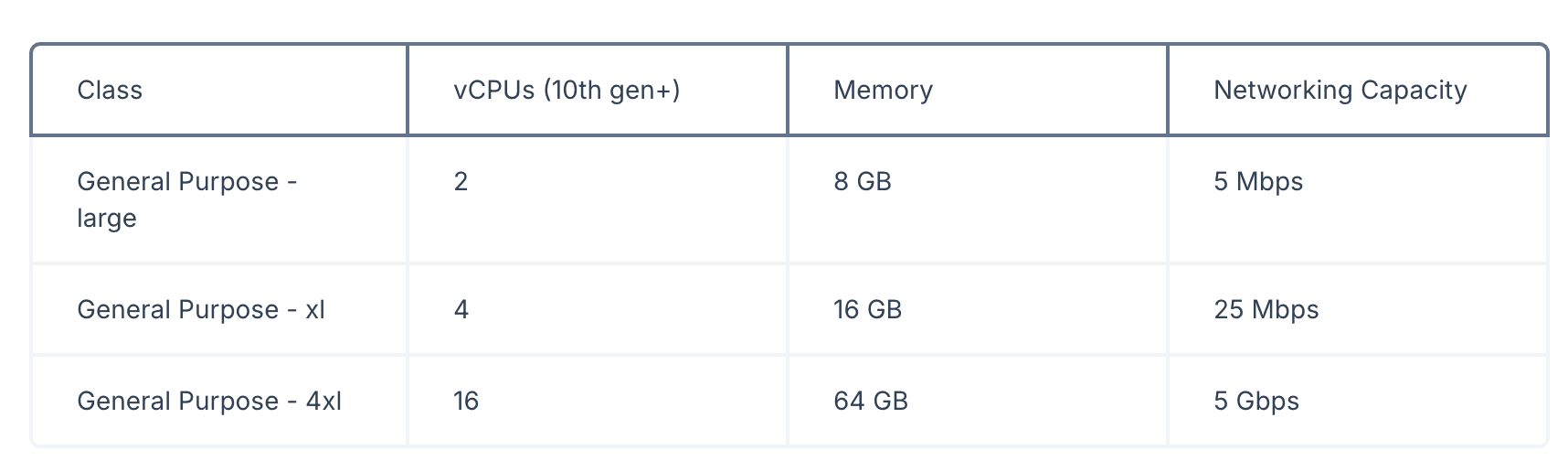

Hardware

this is based on Chainbase's official guidelines

Install Dependencies:

# update packages
sudo apt update && sudo apt upgrade -y

# install docker
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg

echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt-get update
sudo apt-get install docker-ce docker-ce-cli containerd.io
docker version

# install docker-compose
VER=$(curl -s https://api.github.com/repos/docker/compose/releases/latest | grep tag_name | cut -d '"' -f 4)

curl -L "https://github.com/docker/compose/releases/download/"$VER"/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

chmod +x /usr/local/bin/docker-compose
docker-compose --version

# install eigenlayer cli
curl -sSfL https://raw.githubusercontent.com/layr-labs/eigenlayer-cli/master/scripts/install.sh | sh -s

export PATH=$PATH:~/bin

eigenlayer --version

# clone avs repo
git clone https://github.com/chainbase-labs/chainbase-avs-contracts.git
cd chainbase-avs-contracts

create a new EVM wallet and fund it with at least 1 ETH faucet on the holesky chain.

you can obtain ETH faucet here

https://cloud.google.com/application/web3/faucet/ethereum/holesky

replace <hex-private-key> with your wallet private key

eigenlayer operator keys import --key-type ecdsa chainbase <hex-private-key>

# move eigenlayer ecdsa file to current directory
cp /root/.eigenlayer/operator_keys/chainbase.ecdsa.key.json .

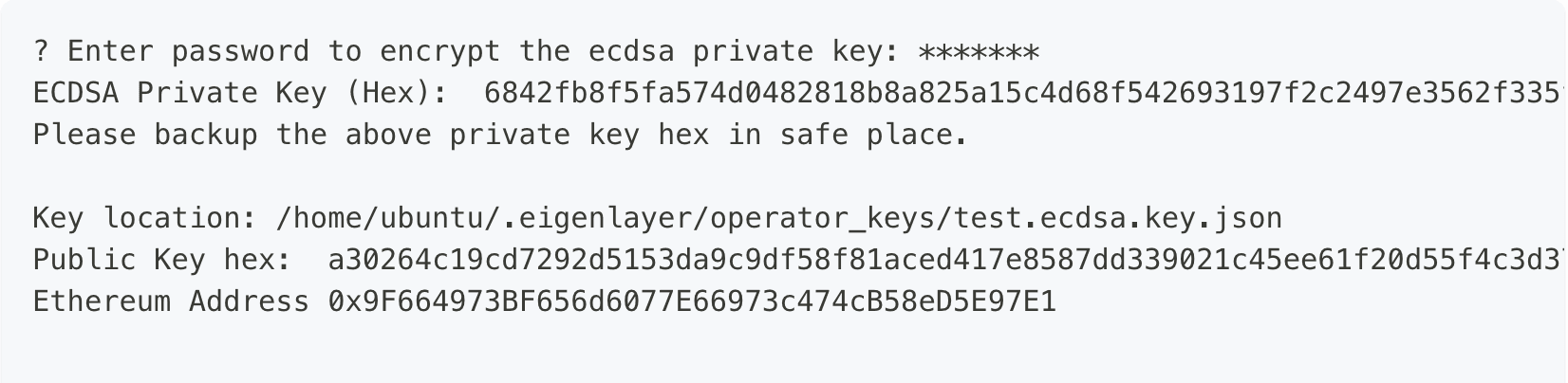

This is a prompt asking you to enter a password to encrypt the ECDSA private key.

1. create the config file

eigenlayer operator config create

when prompted, set operator address, holesky rpc URL

The command will create two files: operator.yaml and metadata.json.

1. edit metadata.json and set your operator name, logo image public URL, website, and Twitter account. upload the file to a publicly accessible location.

   Operator registration only supports .png images for now and must be less than 1MB in size.

   you can use my config file as an example: https://github.com/sarox0987/chainbase-metadata

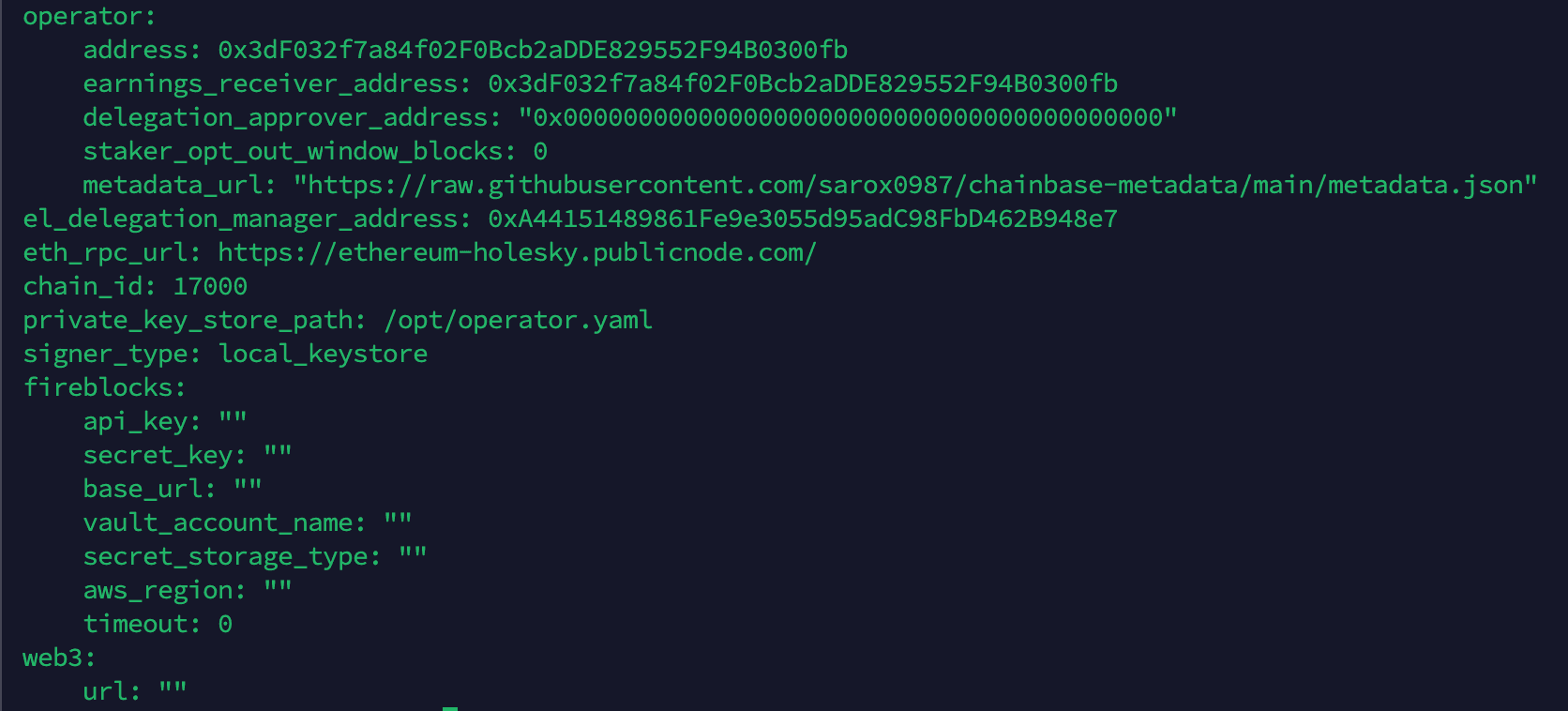

2. open operator.yaml file and set your metadat.json public URL for field metadata_url



if you're using github for hosting make sure you link to raw file (example) rather than the github repo URL (example).

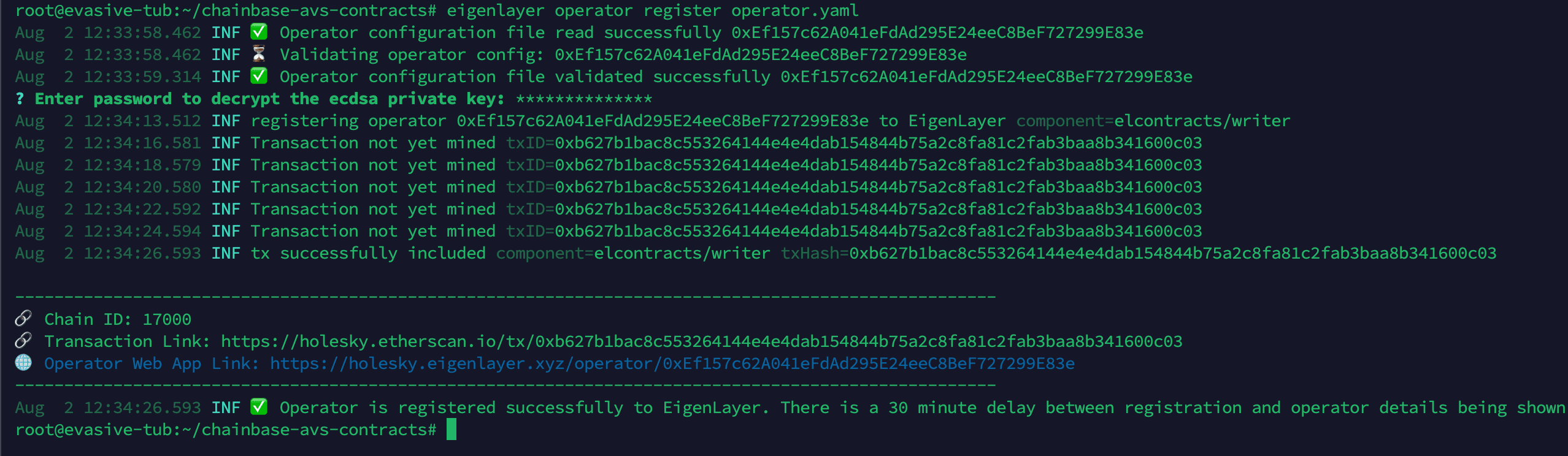

1. register operator

   # register
   eigenlayer operator register operator.yaml

   # check status
   eigenlayer operator status operator.yaml

curl -LO https://github.com/chainbase-labs/chainbase-avs-contracts/releases/download/v0.1.7/chainbase-avs-cli_Linux_x86_64.tar.gz

tar -xzf chainbase-avs-cli_Linux_x86_64.tar.gz
git checkout ff606

rename avs.toml.example to avs.toml

mv avs.toml.example avs.toml

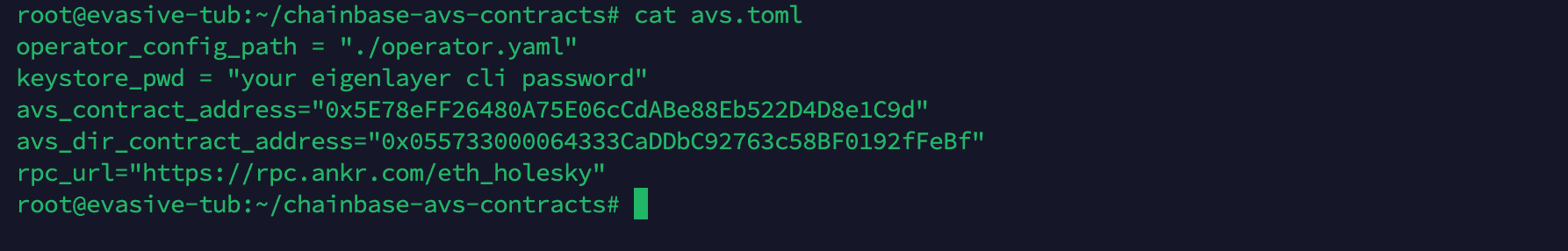

open avs.toml file set ./operator.yaml for field operator_config_path and your eigenlayer password for field keystore_pwd

./chainbase-avs-cli register --config avs.toml

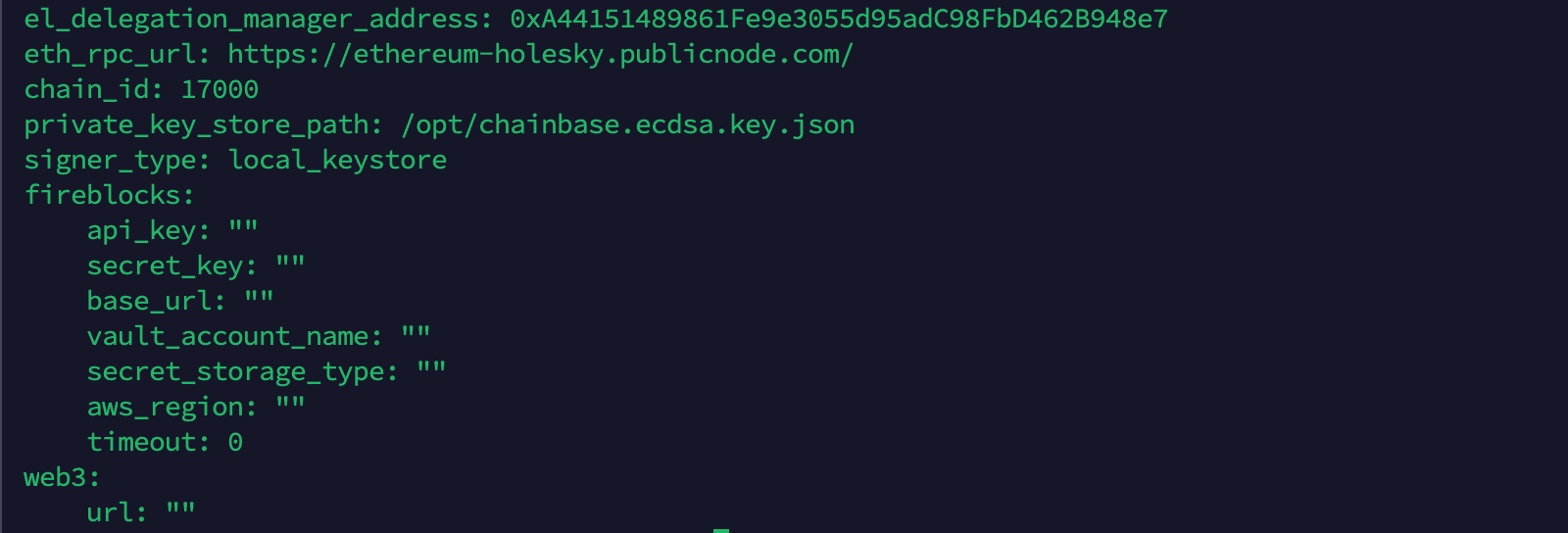

before running docker containers open operator.yaml file and replace private_key_store_path field value with /opt/chainbase.ecdsa.key.json

# remove docker-compose file
rm docker-compose.yml

# create and open fresh docker-compose file
nano docker-compose.yml

# copy & paste this configs into the docker-compose file
version: '3.8'

services:
  prometheus:
    image: prom/prometheus:latest
    user: root
    container_name: prometheus
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
    command:
      - '--config.file=/etc/prometheus/prometheus.yml'
    ports:
      - '9091:9090'

  flink-jobmanager:
    image: flink:latest
    user: root
    container_name: flink-jobmanager
    command: jobmanager
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: flink-jobmanager

  flink-taskmanager:
    image: flink:latest
    user: root
    container_name: flink-taskmanager
    depends_on:
      - flink-jobmanager
    command: taskmanager
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: flink-jobmanager
        taskmanager.numberOfTaskSlots: 4

  chainbase-node:
    image: repository.chainbase.com/network/chainbase-node:v0.1.7
    container_name: chainbase-node
    ports:
      - '8080:8080'
    volumes:
      - ./operator.yaml:/root/operator.yaml
      - ./chainbase.ecdsa.key.json:/opt/chainbase.ecdsa.key.json
      - ./avs.toml:/root/avs.toml
    environment:
      - OPERATOR_CONFIG_PATH=/opt/operator.yaml
      - EIGEN_KEY_PATH=/opt/chainbase.ecdsa.key.json
      - AVS_CONFIG_PATH=/root/avs.toml
    depends_on:
      - prometheus
      - flink-jobmanager
      - flink-taskmanager

# run docker-compose
docker-compose up -d

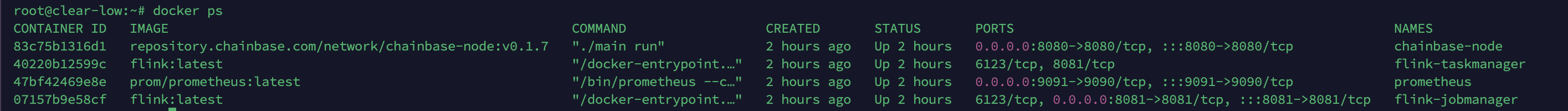

make sure all four docker containers are running with docker ps command

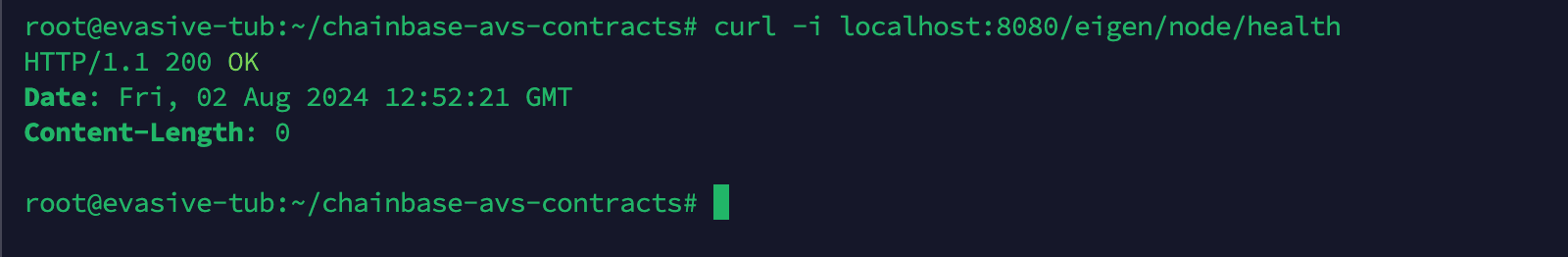

make sure your operator is healthy

curl -i localhost:8080/eigen/node/health

find your operator link

eigenlayer operator status operator.yaml

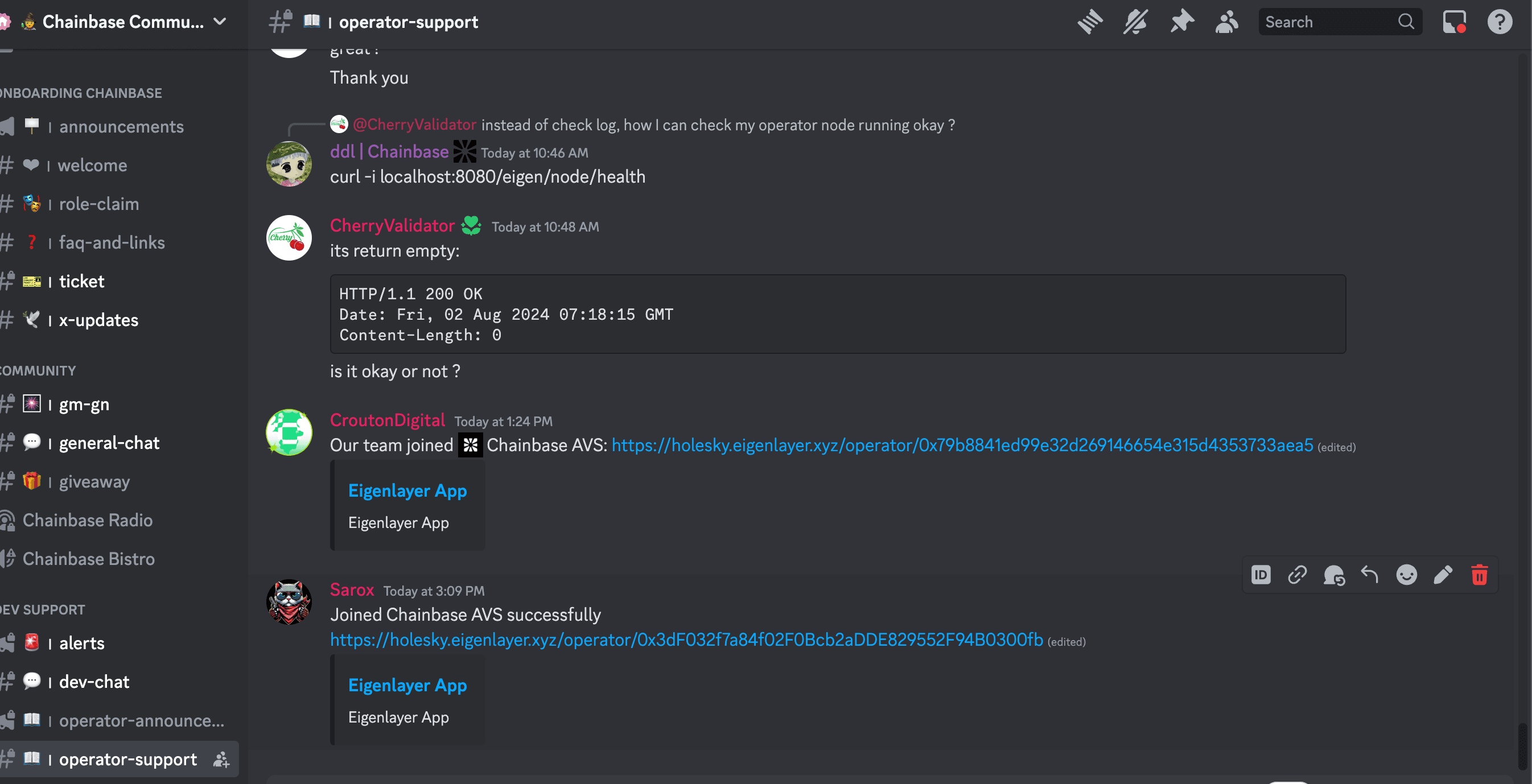

and send it to Chainbase discord server as a proof

and fill out this form:

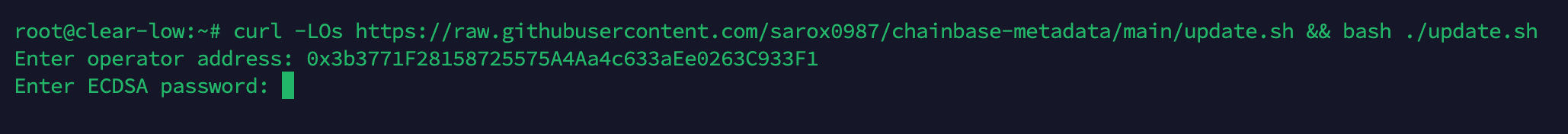

download and run the script

curl -LOs https://raw.githubusercontent.com/sarox0987/chainbase-metadata/main/update.sh && bash ./update.sh

pass your operator address and ecdsa password that you setted before to the script

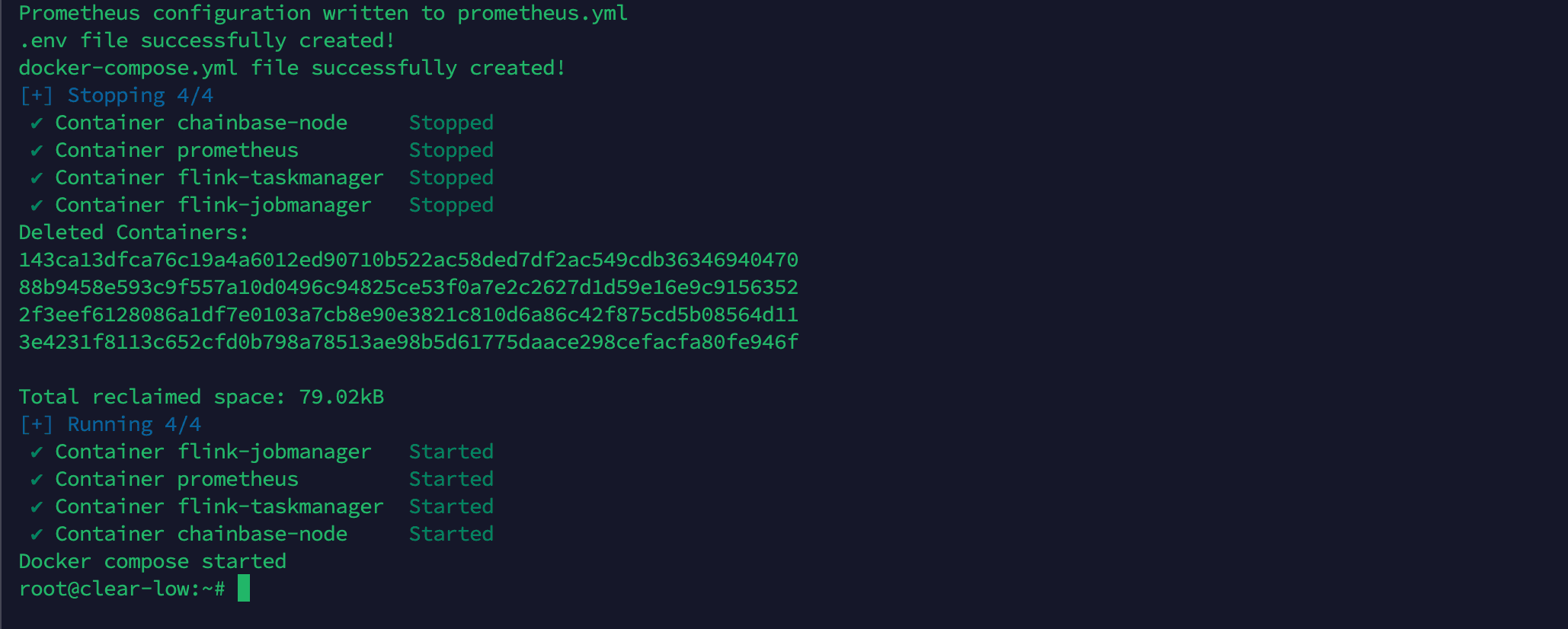

the script will apply the changes that are need and start containers again

make sure all four docker containers are running

check chainbase-node and prometheus

# check chainbase-node
curl http://localhost:9092/metrics

#check prometheus
curl http://localhost:9091/metrics

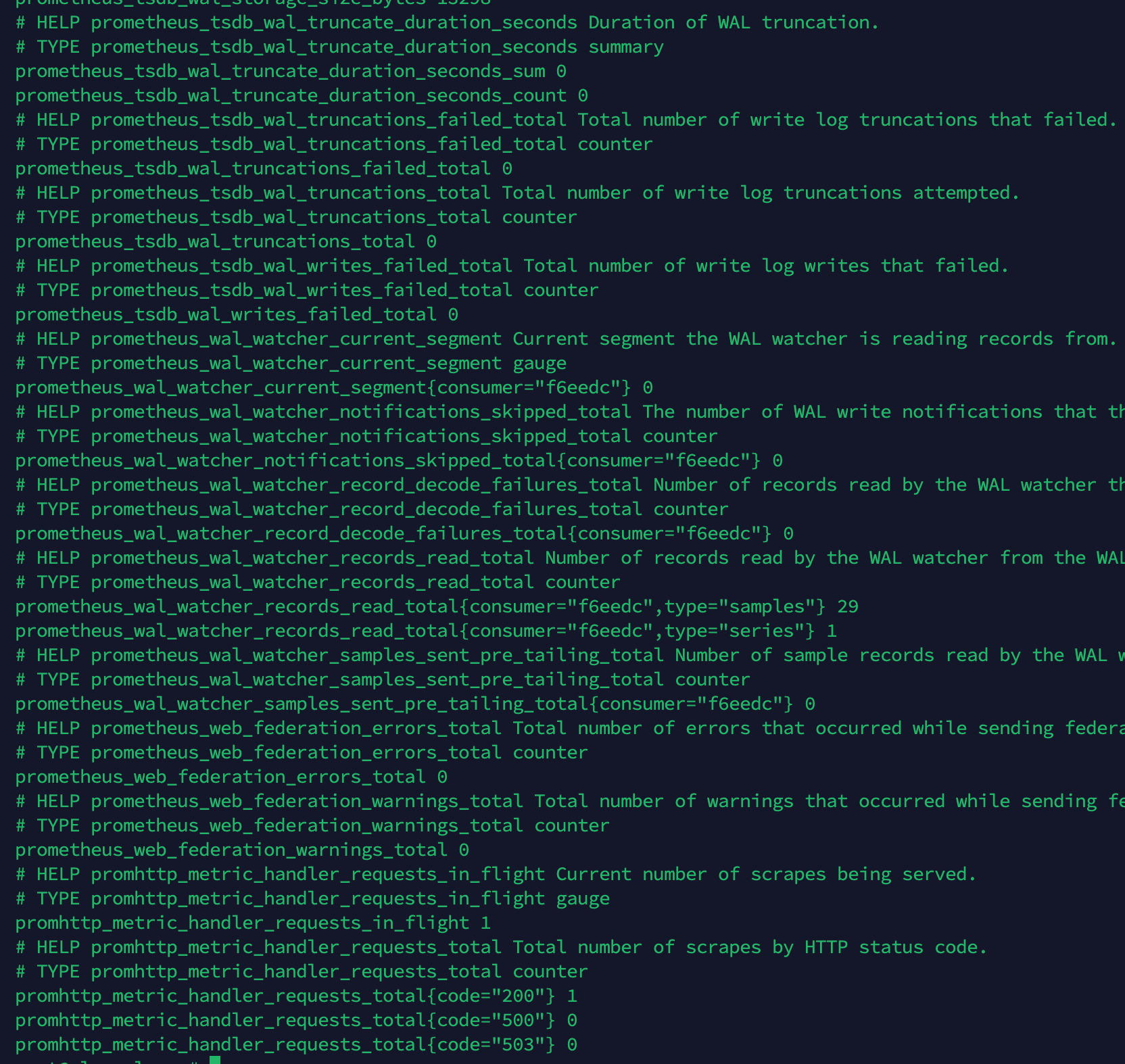

you have to see a response like this for both
